Door check strap/hinge link interchangeability

If there isn't a place for your question then put it here.
Registered User
Posts: 118
Joined: Tue May 31, 2016 3:54 pm
Has thanked: 12 times
Been thanked: 3 times

Door check strap/hinge link interchangeability

Postby EPfiffner » Mon Aug 01, 2016 8:02 am

I had a broken door check strap/hinge link on the drivers side. The '87-'92 design is different than the '93+. I had no luck finding a '93+ part.
Thanks to user ifixalot for providing a ebay link to the early design part.
I was able to successfully install the early design part on my '93.

I did have to buy nuts, flat washers, and lock washers. The thread on the early style studs is M6 (I believe), the newer style is smaller. The hardware was available at the local hardware.

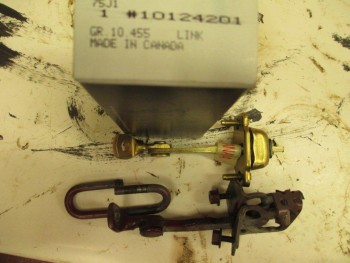

Old vs new, GM p/n (thanks ifixalot)

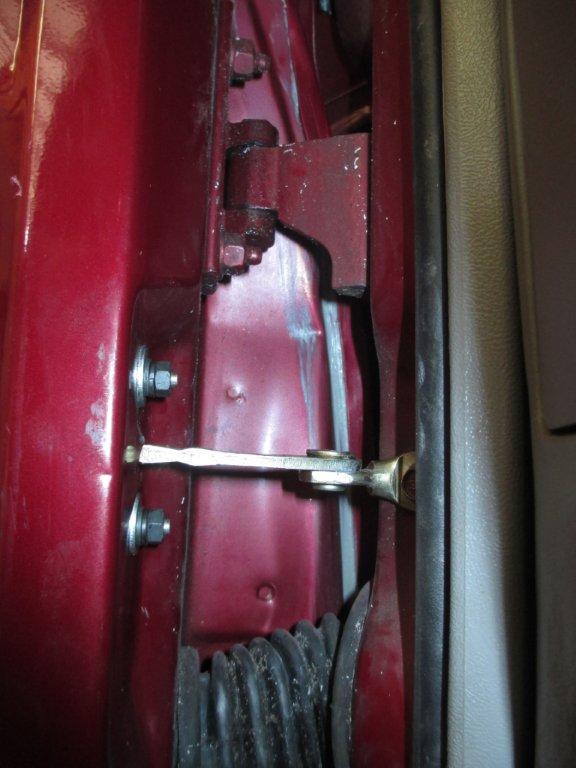

Installed with new larger hardware. I used 1/4" flats with M6 flats, locks, and nuts. The 1/4" flats were to help reinforce since the area was stressed from the door being overextended.

User avatar
Registered User
Posts: 2744
Joined: Sat Mar 23, 2002 1:06 pm
Location: A town up north
Has thanked: 18 times
Been thanked: 11 times

Re: Door check strap/hinge link interchangeability

Postby 1988GTU » Mon Aug 01, 2016 7:16 pm

nice and brief.


User avatar
Registered User
Posts: 921
Joined: Wed Jul 29, 2009 9:27 pm
Been thanked: 4 times

Re: Door check strap/hinge link interchangeability

Postby Slinky » Wed Aug 03, 2016 8:51 am

Nice, thanks for letting us know!
I just ordered 2

1 Of 1 Street Legal Centri S/c Beretta's In Existance
