Pauly's 90 GTZ rebuild.

Tell us about your Beretta and Post an Image
User avatar
Red_Bra_Black_GTZ
Registered User
Posts: 377
Joined: Tue Sep 11, 2007 3:02 pm
Location: Montreal, QC
Has thanked: 2 times
Contact:

Pauly's 90 GTZ rebuild.

Postby Red_Bra_Black_GTZ » Tue Aug 02, 2011 4:50 pm

Well as some of you may know, October 2009 i over revved for tooooo long and 'spun a bearing' on the crank at #3 rod. The oil over heated and the crank was warped. When the oil/engine cooled down, it can be driven (more noise then 3 Quads put together).

I needed to save up some $$$$$ to repair my little baby. I am the original owner of the 90 GTZ with 51 000 miles on her. I did not want to buy a JY engine with 150k on it, so i saved up, and in march the rebuild was started. If i was to rebuild it, i wanted the best parts i could lay my hand on.

here is the list of what i got.
brand new wrapped in a 1991 news paper a Rocket Parts forged crank.
Eagle rods.
Ross racing pistons (powder coated top and sides), compression still at 10:1 reverse dome.
Total Seal piston rings.
Extremely high compression bee hive springs (for my high revving).
Ottawa (bully) clutch, stage 1, 4 disk kevlar/organic (dual friction).
rocket parts flywheel (lightly used).
Ron S. headers, (powder coated black).
Dynomax #17226 muffler.
Vibrant metal core cat #7100.
2 1/4" mandrel exhaust pipe.
SS flex coupler, SS exhaust tips.
Auto Meter Pro-Lite, warning lite sensor system. set at water 230 deg. F, oil 275 deg. F.
MSD Ignition, tune able shift light.
Northern twin electric 2400 CFM rad fan.
62 mm TB with a proper CAI, K&N cone filter # RU 1460.
B&M oil cooler rad #70265 with SS braided lines.
DEI exhaust wrap(for the headers).
180 deg F thermostat.
Felpro gas kits all around.
new brass valve guides.
new head bolts.
to increase the air flow upwards into the rad's, (water, A/C, oil) a mustang mach 1 Chin spoiler.
light weight (racing) starter.
the tranny was sent out to Engineered Performance, he installed his LSD unit, and changed my FDR to 3.94.

i also bought 4 deg. +/- adj. cam gears, they had to be removed. the vacuum was way to low with that much over lap.
i have a spare Felpro set.
i have an aluminum Fidenza fly wheel. (it did not arrive in time, therefor i bought/installed the RP)

still remaining is the greatly required tuning. she breaths and ex hails a hell of a lot more then ever.

un tuned the car has been dynode 4 times, ther best is at a modest 6800 revs, 174.7 HP and 141.5 torque. My air fuel exhaust ratio is off.(need to be tuned). She was born to a 180HP and 160 torque at the flywheel.

side note: prior to installing the heat resistant tape on the headers, i did a 2 hour highway round trip run on a very hot day with the A/C on max. the engine compartment became very hot. the headers heat melted my steering bellows. so they installed an asbestos blanket from a cavalier on my new bellows.

the speed shop put out 140 or so hours. which includes all machine work on the engine.

in march i told them that i wanted to do the above mentioned rebuild, and that i wanted to stay with pumped gas(that is why they choose to keep me at 10:1 compression ratio (i wanted 11:1 or so). it also explains the safety heat (oil and water) sensors/light. also the need for an external oil cooler and increase CFM at the rad fans.
they balanced and blue printed, and magna fluxed the block. the head was plained. etc, etc. the only thing they did not do that i really wanted them to do, was to send it all out for a Cryo freeze. it would of cost (Cryo only) about $1000.00, including my rotors and shafts..
they also detailed the engine compartment and re painted the 'cradle'.

** prior mods include:
W 41 cams and chip.(chip from racin17)
92 front brakes (10.2")
rear disk from a pontiac 6000 STE(10.2")
MRZ fully welded strut bar, and shock tower braces.
Mantaparts lowering kit, and bigger sway bars.
ported and polished 086 head, extrude and honed intake log.

Pauly.
Attachments

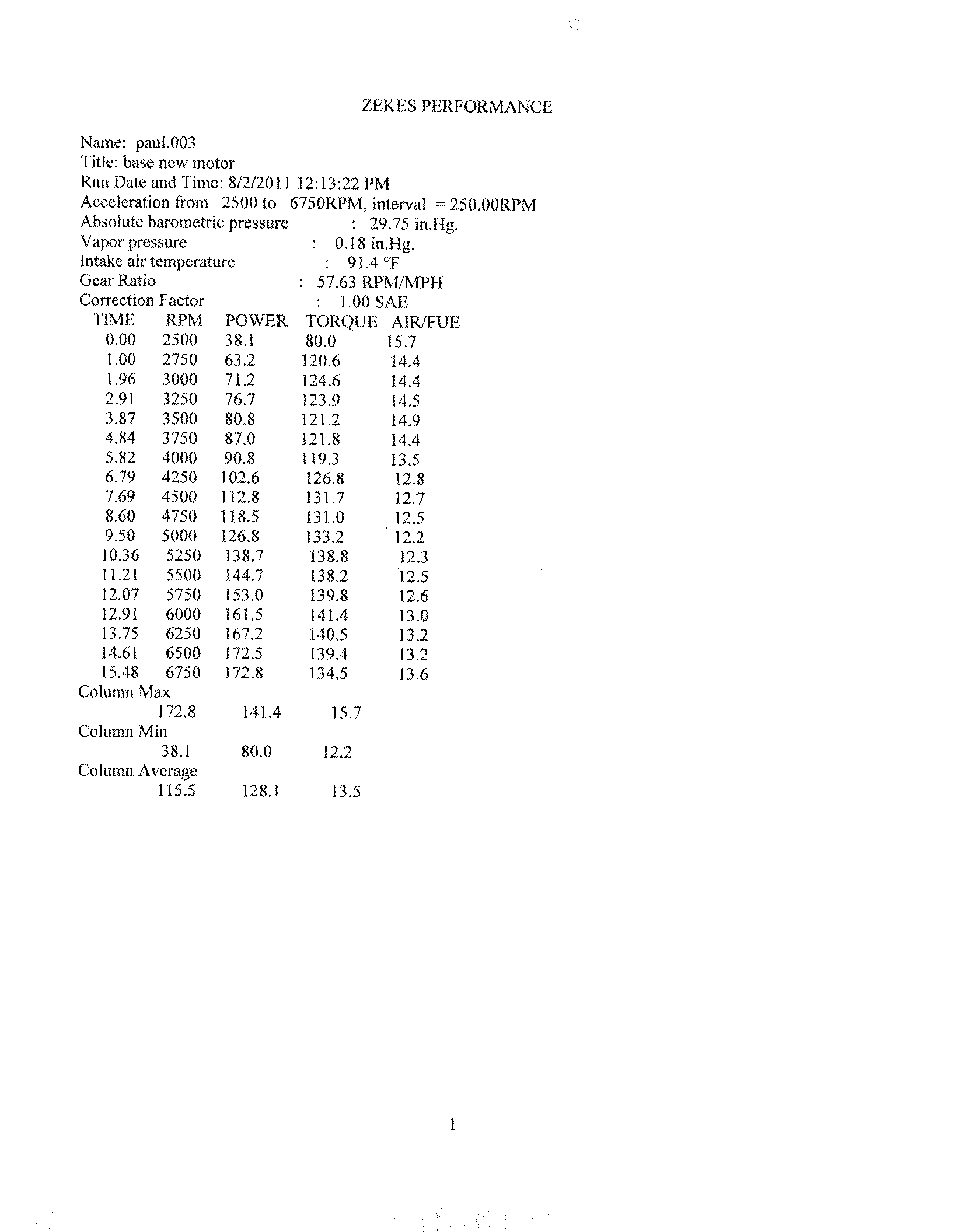

paul c. aug 2nd dyno 001.jpg
paul c. aug 2nd dyno 002.jpg
Last edited by Red_Bra_Black_GTZ on Sun Feb 22, 2015 8:05 pm, edited 3 times in total.



User avatar
Red_Bra_Black_GTZ
Registered User
Posts: 377
Joined: Tue Sep 11, 2007 3:02 pm
Location: Montreal, QC
Has thanked: 2 times
Contact:

Re: my 90 GTZ rebuild.

Postby Red_Bra_Black_GTZ » Thu Aug 04, 2011 11:56 am

Image old engine compartment.
Imagenew engine compartment.
Imageheaders
Imageheaders exhaust
ImageSS tips
Imagetaped up headers
Imageprotector installed on steering bellows.



User avatar
Red_Bra_Black_GTZ
Registered User
Posts: 377
Joined: Tue Sep 11, 2007 3:02 pm
Location: Montreal, QC
Has thanked: 2 times
Contact:

Re: my 90 GTZ rebuild.

Postby Red_Bra_Black_GTZ » Thu Aug 04, 2011 12:04 pm

Imageoil cooler
Imageoil cooler and SS lines
Image62mm throttle body
ImageTB and a portion of Cold Air Induction
Imagerelocated canister(due to swap with CAI)
Imagetwin rad fans (2400CFM)
ImageLEFT: high temp, either 230 F rad/water, or 275 F oil. RIGHT: shift light.



User avatar
heavywoody
Global Moderator
Posts: 1848
Joined: Sun Nov 03, 2002 4:10 pm
Location: Concord, NC
Has thanked: 8 times
Been thanked: 15 times
Contact:

Re: my 90 GTZ rebuild.

Postby heavywoody » Thu Aug 04, 2011 12:08 pm

You went from an FE7 bar to downgrade to an FE3?

I'm diggin' the dual fan setup. More info?


Geoff
95 Z26 3400 5spd
Beretta Preservation Society - Director of Acquisitions

User avatar
Red_Bra_Black_GTZ
Registered User
Posts: 377
Joined: Tue Sep 11, 2007 3:02 pm
Location: Montreal, QC
Has thanked: 2 times
Contact:

Re: my 90 GTZ rebuild.

Postby Red_Bra_Black_GTZ » Thu Aug 04, 2011 12:24 pm

heavywoody wrote:You went from an FE7 bar to downgrade to an FE3?

I'm diggin' the dual fan setup. More info?

sway bars, shocks/struts, springs were all done in june of 2000 at mantaparts.

my invoice says, Northern twin electric 2400 CFM rad fan.
Last edited by Red_Bra_Black_GTZ on Thu Aug 04, 2011 12:51 pm, edited 1 time in total.



User avatar
ErichZ26
Registered User
Posts: 922
Joined: Thu Apr 26, 2001 1:59 pm
Location: Chicago
Contact:

Re: my 90 GTZ rebuild.

Postby ErichZ26 » Thu Aug 04, 2011 12:27 pm

nice engine build. It needs a nitrous shot now.

Interesting where you moved the vacuum tank. Aren't you afraid of getting water now ;)

I am leaving my 1990's engine bay stock looking. I am curious to how much you gained just from the 65mm throttle and the intake.



User avatar
ErichZ26
Registered User
Posts: 922
Joined: Thu Apr 26, 2001 1:59 pm
Location: Chicago
Contact:

Re: my 90 GTZ rebuild.

Postby ErichZ26 » Thu Aug 04, 2011 12:34 pm

Red_Bra_Black_GTZ wrote:
heavywoody wrote:You went from an FE7 bar to downgrade to an FE3?

I'm diggin' the dual fan setup. More info?

sway bars, shocks/struts, springs were all done in june of 2000 at mantaparts.

my invoice saya' Northern twin electric 2400 CFM rad fan.



I have seen those fans before...but looks like a custom shroud.



User avatar
ErichZ26
Registered User
Posts: 922
Joined: Thu Apr 26, 2001 1:59 pm
Location: Chicago
Contact:

Re: my 90 GTZ rebuild.

Postby ErichZ26 » Thu Aug 04, 2011 12:36 pm

heavywoody wrote:You went from an FE7 bar to downgrade to an FE3?

I'm diggin' the dual fan setup. More info?



Still figuring out which is "better" The SCX had the 30mm FE3.



User avatar
Red_Bra_Black_GTZ
Registered User
Posts: 377
Joined: Tue Sep 11, 2007 3:02 pm
Location: Montreal, QC
Has thanked: 2 times
Contact:

Re: my 90 GTZ rebuild.

Postby Red_Bra_Black_GTZ » Thu Aug 04, 2011 12:37 pm

ErichZ26 wrote:
Red_Bra_Black_GTZ wrote:
heavywoody wrote:You went from an FE7 bar to downgrade to an FE3?

I'm diggin' the dual fan setup. More info?

sway bars, shocks/struts, springs were all done in june of 2000 at mantaparts.

my invoice saya' Northern twin electric 2400 CFM rad fan.



I have seen those fans before...but looks like a custom shroud.

i do not believe so, i saw it prior to being installed and it looked like it was ordered that way.

linky (not sure if this is my exact model)http://www.hrpworld.com/index.cfm?tpc=Northern-Dual-10-HURRICANE-Fan-Shroud-Assemblies&form_prod_id=3709&action=product
Last edited by Red_Bra_Black_GTZ on Thu Aug 04, 2011 12:43 pm, edited 1 time in total.



User avatar
heavywoody
Global Moderator
Posts: 1848
Joined: Sun Nov 03, 2002 4:10 pm
Location: Concord, NC
Has thanked: 8 times
Been thanked: 15 times
Contact:

Re: my 90 GTZ rebuild.

Postby heavywoody » Thu Aug 04, 2011 12:42 pm

I feel like my car has too much push in the front end... I've got a 92-93 V6 FE7 bar to put on, just need to find some free time, and cooler weather!


Geoff
95 Z26 3400 5spd
Beretta Preservation Society - Director of Acquisitions

User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: my 90 GTZ rebuild.

Postby 3X00-Modified » Thu Aug 04, 2011 1:06 pm

What do you have in the rear for bars Geoff?

Nice to see some details about this built too Paul!



User avatar
Red_Bra_Black_GTZ
Registered User
Posts: 377
Joined: Tue Sep 11, 2007 3:02 pm
Location: Montreal, QC
Has thanked: 2 times
Contact:

Re: my 90 GTZ rebuild.

Postby Red_Bra_Black_GTZ » Thu Aug 04, 2011 1:38 pm

3X00-Modified wrote: Nice to see some details about this built too Paul!


i have been trying for days and hours... the board is totally un user friendly for uploading pics. i kept getting logged out(or bumpded out). or it would say uploading (1 pic) and after 1 hour i gave up. (tried it several times.)



User avatar
heavywoody
Global Moderator
Posts: 1848
Joined: Sun Nov 03, 2002 4:10 pm
Location: Concord, NC
Has thanked: 8 times
Been thanked: 15 times
Contact:

Re: my 90 GTZ rebuild.

Postby heavywoody » Thu Aug 04, 2011 3:14 pm

If you have your pictures off-site (like photobucket or similar) then it's easy. It's ok to admit you're a computer newb Pauly lol


Geoff
95 Z26 3400 5spd
Beretta Preservation Society - Director of Acquisitions

Robert 89gt
Registered User
Posts: 535
Joined: Fri Oct 29, 2010 8:52 am

Re: my 90 GTZ rebuild.

Postby Robert 89gt » Thu Aug 04, 2011 3:30 pm

Wow nice dyno numbers.Almost 175whp i like the duel fans also.Very nice build how do you like the total seal rings??
I was thinking about them.But someone said sometimes they seal too good??



User avatar
DTMAce
Registered User
Posts: 3510
Joined: Thu Sep 25, 2008 7:03 pm
Location: Michigan EUP
Contact:

Re: my 90 GTZ rebuild.

Postby DTMAce » Thu Aug 04, 2011 5:58 pm

Nice. That thing must be mean to drive!


94' Z26 Project - 95' Base Project - Custom LED Light Conversions!
Chosen Proposal Submission & Committee Member for Beretta Fest 2012 in Traverse City Michigan
