Re: LS1/t56 swap

Postby woody90gtz » Mon Jan 04, 2016 9:38 pm

Why spindle mount rather than sealed bearing? Just for durability? Quite similar to the C6 conversion on my F2 spindles.


91 "SS" 3400/5spd - EP, FFP, TCE, SPEC, DSS, S&S, OBD1, 13s? GEARHEAD dezign

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Wed Jan 06, 2016 10:53 am

Yeah its stronger. After all the bearing issues I've had and reading the c4 also has issues was a huge reason. Along with the bolt pattern I wanted too. These are a true race proven setup. Bearing were one of the big things I had to cure with this conversion, killing 4 bearings in 500 miles was one of the major reasons I decided to even go rwd


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Mon Jan 11, 2016 1:46 am

few more updates from today

modified the subframe a bit more on both sides. I still need to beef up the back of it.

finally have both sides "together"! kept forgetting parts in my garage.. its just sitting there, wanted to see how wide the track really was on the car



Its not perfectly centered. but close enough to get an idea of what Im up against. The subframe does need to go up a little along with the control arms too. Nothing was measured for this quick mock up.

once I saw it I figured i would try and pull the fenders out once everything is solid. I know for a fact they have at least 1" of movement in them still.


how badass does this look??




those pictures were with zero camber. I added about -2*

I cant believe how much it tucked in! I only did one side, didnt want to lose my measurements on the other control arm for factory length.


Its... PERFECT! well it will be I should say.


I probably wont make it out to work on it more for a few weeks.. but when I do Ill be able to finish up the subframe bracing at least.


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

User avatar
keiffith
Registered User
Posts: 155
Joined: Mon Jul 26, 2010 7:44 pm

Re: LS1/t56 swap

Postby keiffith » Mon Jan 11, 2016 2:48 am

Been gone a while and really surprised to see this chugging along. bookmarked for future reference to my dream of a 3.8 turbo RWD beretta.

what kind of frame reinforcement are you putting in to prevent the car from twisting itself apart? my idea was to link the roll cage to the front and rear subframes.



73 Yamaha RD250 The Real Fun
99 Cherokee manual 2 door Beater
92 3.1 auto base other Beater
92 3.1 manual base 190k The "nice" one
93 3.1 auto base 275k RIP

CPL, USMC, Veteran/2111

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Mon Jan 11, 2016 11:01 am

Why a 3.8? It would be cool just curious. Beretta GNX?

I plan to build a full frame along with a 6 point cage. 8 or 10 point if i have the head room to safely drive it on the street without a helmet


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

User avatar
keiffith
Registered User
Posts: 155
Joined: Mon Jul 26, 2010 7:44 pm

Re: LS1/t56 swap

Postby keiffith » Tue Jan 12, 2016 2:29 am

essentially yes. i want to use a c5 transaxle so i can get more weght to the rear and to minimize firewall hackage.

I have a preference for 6's and the 3.8 has always been my favorite.



73 Yamaha RD250 The Real Fun
99 Cherokee manual 2 door Beater
92 3.1 auto base other Beater
92 3.1 manual base 190k The "nice" one
93 3.1 auto base 275k RIP

CPL, USMC, Veteran/2111

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Tue Jan 12, 2016 10:03 am

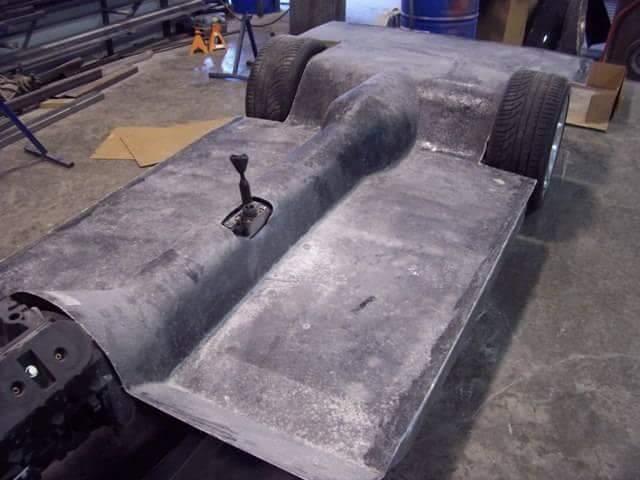

Nice, it would be pretty cool. Something to think about is the torque tube is giant. Not sure if you would adapt that to work or not. Pretty sure its bigger than a t56 tho, and its the whole floor. I Built a nomad (well some of it) way back when i worked at a street rod shop, it had full c5 drivetrain, almost had no room for a seat. Like the beretta, it was a lot more narrow. Ill see if i can dig up some pics tonight


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

User avatar
woody90gtz
Registered User
Posts: 4032
Joined: Thu Jul 11, 2002 8:45 pm
Location: Walton, NY
Has thanked: 4 times
Been thanked: 7 times
Contact:

Re: LS1/t56 swap

Postby woody90gtz » Tue Jan 12, 2016 8:08 pm

Looking really good. I'm amazed at how much that negative camber changed the placement.


91 "SS" 3400/5spd - EP, FFP, TCE, SPEC, DSS, S&S, OBD1, 13s? GEARHEAD dezign

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Wed Jan 13, 2016 12:50 am

Thanks! Yeah i couldnt believe it only took 2*!! It looks like its going to make my life a bit easier


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Wed Jan 13, 2016 1:02 am

keiffith wrote:essentially yes. i want to use a c5 transaxle so i can get more weght to the rear and to minimize firewall hackage.

I have a preference for 6's and the 3.8 has always been my favorite.




Pics dont really do it justice for how big it is, compare it to the t56 belhousing pic i posted earlier up aginst the beretta. Something to keep in mind anyways.


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Sun Feb 07, 2016 11:32 pm

Made some decent progress today.


Finally decided to put the factory measuring points to work to make sure the front end was square (Huge thanks to a friend for hooking me up with the diagrams awhile back, Should have checked it a long time ago). Everything was good, so I modified my subframe a bit and added some cross bracing that I can use for a measuring point. square and level. (the slots cut in the subframe for the control arms were an educated guess. I didnt measure, thats why it looks funny)



Added more bracing up front, nothing was measured, just added to help keep it from moving for the time being.



Upper brace was added, more if just a measuring point. Perfectly square and level. Makes getting the engine in and out a HUGE pain in the ass! oh well.. needed to be done.



Cut more out for the upper control arms



The reason for the upper "brace"



Within 1/16" in this pic. Ended up moving around trying to figure out some other things, thought id add it tho.



I needed to move the subframe up 1" to get this ride height with the correct geometry. SOO ill be adding a 1x6 by going across the modified subframe to sit the aftermarket subframe on. Really undecided on if im going to weld it all together, drill a few holes and bolt it in with a little slop just in case it needs to get moved a hair one way or another, or just use big ass C clamps till the real frame goes under..

I think another day on the front end, then Ill start building something to square it all up with the back and start on the back. I dont think Im going to weld or drill any holes just yet on the front end as far as mounting goes. Also need to figure out what to do about rust prevention on the aftermarket subframe so I can leave it in the car. Its going to get ground off anyways when it gets welded to the real frame, and painted, so Im trying to be cheap about it. Might end up doing por15 tho..


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

User avatar
bonecrrusher
Registered User
Posts: 644
Joined: Thu Apr 26, 2001 3:11 pm
Location: Charlotte, NC
Been thanked: 1 time
Contact:

Re: LS1/t56 swap

Postby bonecrrusher » Mon Feb 08, 2016 7:31 am

POR15 will be a pain to sand off - just get some self etching primer - that should seal it up.


2005 Chevrolet Corvette Z51
2005 GMC Sierra 2500HD
2014 Chevy SS

Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Mon Feb 08, 2016 10:49 am

Good to know, i didnt know that. Might not be bad if i can paint over it.. etching primer cant be too bad tho.

Thanks


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car

User avatar
Barry
Global Moderator
Posts: 1855
Joined: Fri Feb 29, 2008 8:11 pm
Location: Hatfield Pa
Been thanked: 1 time

Re: LS1/t56 swap

Postby Barry » Mon Feb 08, 2016 12:57 pm

How much caster are you aiming for?

Looking good. Very excited for this.



Alxsmt
Registered User
Posts: 199
Joined: Sat Jun 11, 2011 12:08 am
Been thanked: 1 time

Re: LS1/t56 swap

Postby Alxsmt » Mon Feb 08, 2016 3:02 pm

Ill probably end up shooting for +5*. Ill be setting it up for zero camber and factory caster when I finalize where its going. I havnt measured caster at all. Probably wouldnt be a bad idea so I at least know where it is.. I guess it could end up moving the tire off center.


88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, cam gear, magnaflow, Koni, H&R
86 Subi - rally car
