WATER LEAK DIAGNOSTIC
GUIDE (INFORMATION)
Chevrolet Service
Bulletin Number
53-10-21
Models Covered 1987-1996 Chevrolet Beretta and
Corsica
This section covers
common water leak areas for the "L" body car. Again it's
recommended that you have a factory service manual or other equivalent type
of book to help aid in the removal of parts. This section should be
used as a guide to help you locate water leaks. The service bulletin
number above can be given to a GM tech if you take your car in for service.
The information below is taken directly from said bulletin.
From personal experience
I have had some water leak trouble in my Beretta. I'll offer some tips
that I used, it is much easier to locate a leak with the carpet
removed. While it takes some time to remove the carpet you thank
yourself later. It has taken me several tries to locate the leaks,
don't give up they can be frustrating to find! As for a sealer to use I
would recommend a silicon type sealer. I used GE brand silicon II, one
thing that I like the fact that it is permanently flexible and is UV
resistant. Other brands didn't make that claim so I went with it. They
(GE) sell an "automotive" blend that comes in black. I looked
closer and their "premium" outdoor Silicon II contained the same
ingredients but was clear instead of black. I first started out with
the small auto tube but needed a LOT more and found the clear caulk gun tube
was a better buy. Also many of the spots that need to be re-sealed are
hard to access and get the tube into. I used latex doctor gloves and
put some caulk on my finger and spread it on the spots I suspected of
leaking. Follow the instructions on whatever type of caulk you buy and
make sure your surfaces are clean and dry. I used a heat gun to make
sure everything was really dry but a hair dryer would probably work. On
last tip if you need to remove your air inlet screens at the base of the
windshield I would recommend that you buy a battery terminal puller. It
works great for removing your wiper blade arms.
Good Luck!!!
|
|
Condition: Carpet wet under right side of
instrument panel.
|
|
Cause:
1. Sealer skip/void

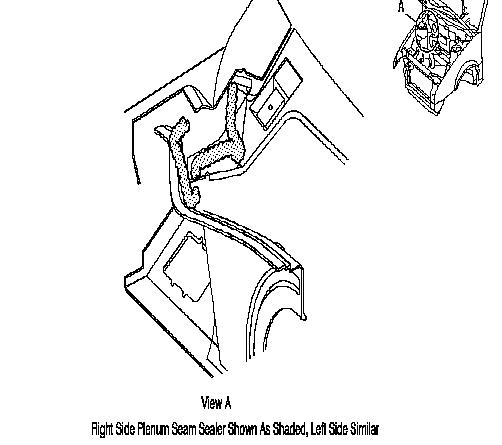

or spot weld burn through at plenum seam. Refer to figures 1 and 2.
|
Correction:
1. Remove Air inlet
screen. Refer to section 10-5 of the service manual.
2. Inspect for a
skip or void in the plenum seam sealer or for spot weld burn through.
3. Apply clear
sealer to any skip or void in the plenum seam sealer or to any spot weld burn
through.
4. Allow sealer to
dry.
5. Direct water
over the plenum seam.
6. Inspect from
passenger compartment for leaks.
7. Install air
inlet screen.
Refer to section 10-5 of the service manual.
|
|
2. Sealer skip/void
or spot weld burn through at the right front body hinge pillar

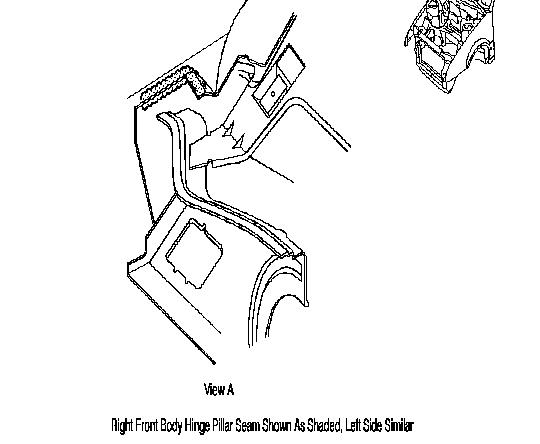

seam. Refer to figure 3.
|
1. Inspect for a
skip or void in the right front body hinge pillar seam sealer or for spot
weld burn through.
2. Apply clear
sealer to any skip or void in the right front body hinge pillar seam sealer
or to any spot weld burn through.
3. Allow sealer to
dry.
4. Direct water
over the right front body hinge pillar seam.
5. Inspect from passenger compartment for leaks.
|
|
3. Sealer skip/void

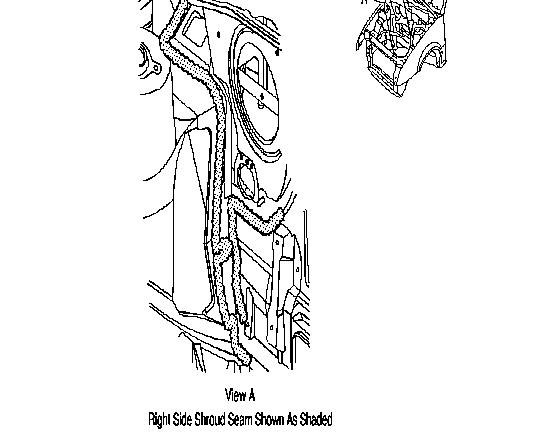

or spot weld burn through at the right side shroud seam. Refer to figure 4.
|
1. Inspect for a
skip or void in the right side shroud seam sealer or for spot weld burn
through.
2. Apply clear
sealer to any skip or void in the right side shroud seam sealer or to any
spot weld burn through.
3. Allow sealer to
dry.
4. Direct water
over the right side shroud seam.
5. Inspect from passenger compartment for leaks.
|
|
4. Distortion or

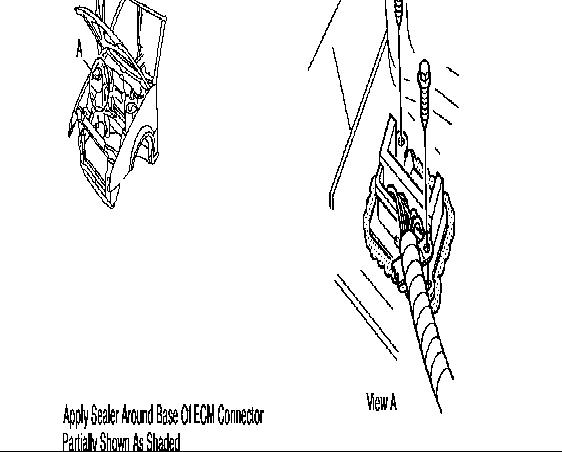

void in the ECM connector gasket. Refer to figure
5 .
|
1. Remove air inlet
screen. Refer to section 10-5 of the service manual.
2. Inspect for
lumps in the seam sealer, which could distort the ECM connector gasket.
Refer to step 6 if there are not any lumps in the seam sealer, which could
cause the ECM gasket to distort.
3. Remove the ECM
connector.
4. Remove seam
sealer lumps.
5. Install ECM
connector.
6. Inspect for a
void in the ECM connector gasket.
7. Apply clear
sealer around entire perimeter of ECM connector.
8. Allow sealer to
dry.
9. Direct water
around ECM connector.
10. Inspect from
passenger compartment for leaks.
11. Install air
inlet screen.
Refer to section 10-5 of the service manual.
|
|
5. Distortion or

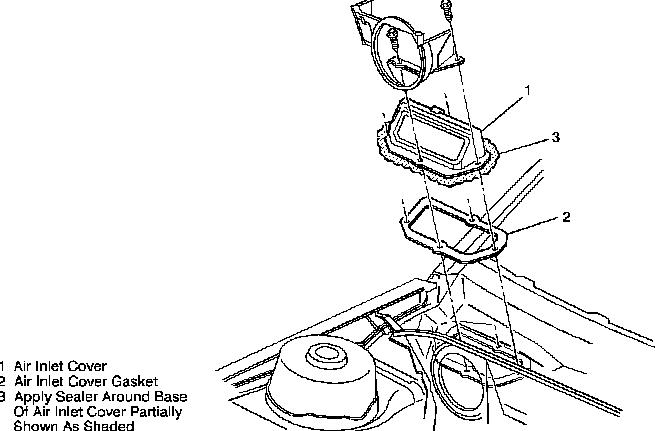

void in HVAC air inlet stack assembly gasket. Refer to figure 6.
|
1. Remove air inlet
screen. Refer to section 10-5 of the service manual.
2. Inspect for
lumps in the seam sealer, which could distort the HVAC air inlet stack
gasket. Refer to step 6 if there are not any lumps in the seam sealer,
which could cause the HVAC air inlet stack gasket to distort.
3. Remove HVAC air
inlet stack.
4. Remove seam
sealer lumps.
5. Install HVAC air
inlet stack.
6. Inspect for a
void in the HVAC air inlet stack assembly gasket.
7. Apply clear
sealer around entire perimeter of HVAC air inlet cover base.
8. Allow air sealer
to dry.
9. Direct water
around HVAC air inlet assembly gasket.
10. Inspect from
passenger compartment for leaks.
11. Install air
inlet screen.
Refer to section 10-5 of the service manual.
|
|
Condition: Carpet wet under left side of
instrument panel.
|
|
Cause:
1. Sealer skip/void or

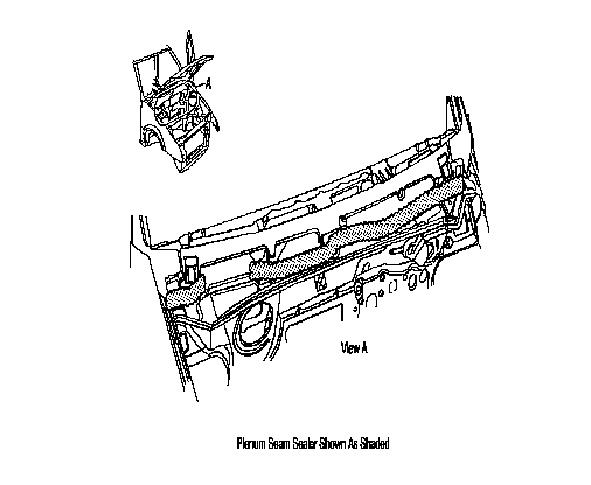

spot weld burn through at plenum seam. Refer to figures 1 and 2.
|
Correction:
1. Remove Air inlet
screen. Refer to section 10-5 of the service manual.
2. Inspect for a
skip or void in the plenum seam sealer or for spot weld burn through.
3. Apply clear
sealer to any skip or void in the plenum seam sealer or to any spot weld burn
through.
4. Allow sealer to
dry.
5. Direct water
over the plenum seam.
6. Inspect from
passenger compartment for leaks.
7. Install air
inlet screen.
Refer to section 10-5 of the service manual.
|
|
2. Sealer skip/void
or spot weld burn through at the left front body hinge pillar seam.
Refer to figure 3 .
|
1. Inspect for a skip
or void in the left front body hinge pillar seam sealer or for spot weld burn
through.
2. Apply clear
sealer to any skip or void in the left front body hinge pillar seam sealer or
to any spot weld burn through.
3. Allow sealer to
dry.
4. Direct water
over the left front body hinge pillar seam.
5. Inspect from passenger compartment for leaks.
|
|
3. Sealer skip/void

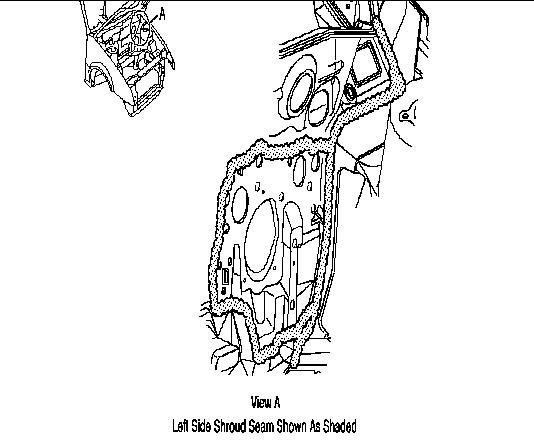

or spot weld burn through at the left side shroud seam. Refer to figure 7.
|
1. Inspect for a
skip or void in the left side shroud seam sealer or for spot weld burn
through.
2. Apply clear
sealer to any skip or void in the left side shroud seam sealer or to any spot
weld burn through.
3. Allow sealer to
dry.
4. Direct water over
the left side shroud seam.
5. Inspect from passenger compartment for leaks.
|
|
4. Hood release

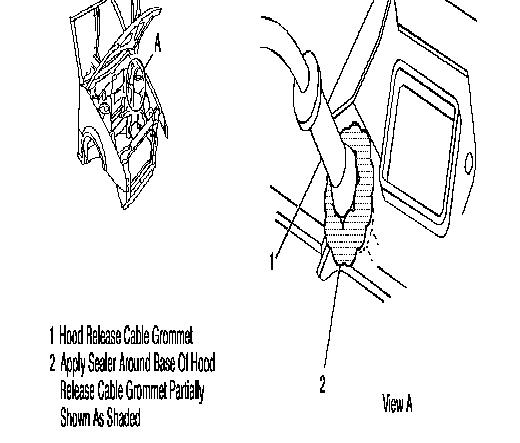

cable grommet not seated or distorted. Refer to figure 8.
|
1. Inspect for
lumps in the seam sealer, which could distort the hood release cable
grommet. Refer to step 5 if there are not any lumps in the seam sealer,
which could cause the hood release cable grommet to distort.
2. Remove the hood
release cable grommet.
3. Remove seam
sealer lumps.
4. Install the hood
release cable grommet.
5. Assure the hood
release cable grommet is seated.
6. Apply clear
sealer around entire perimeter of the hood release cable grommet.
7. Allow sealer to
dry.
8. Direct water
around the hood release grommet.
9. Inspect from passenger compartment for leaks.
|
|
5. Accelerator

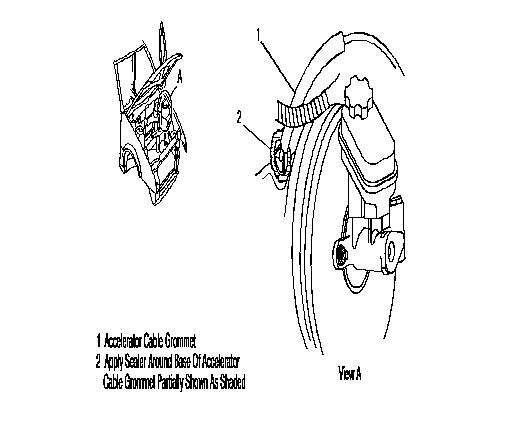

cable grommet not seated or distorted. Refer to figure 9.
|
1. Inspect for
lumps in the seam sealer, which could distort the accelerator cable grommet.
Refer to step 5 if there are not any lumps in the seam sealer, which could
cause the accelerator cable grommet to distort.
2. Remove the
accelerator cable grommet.
3. Remove seam
sealer lumps.
4. Install the
accelerator cable grommet.
5. Assure the
accelerator cable grommet is seated.
6. Apply clear
sealer around entire perimeter of the accelerator cable grommet.
7. Allow sealer to
dry.
8. Direct water
around the accelerator cable grommet.
9. Inspect from passenger compartment for leaks.
|
|
6. Distortion or

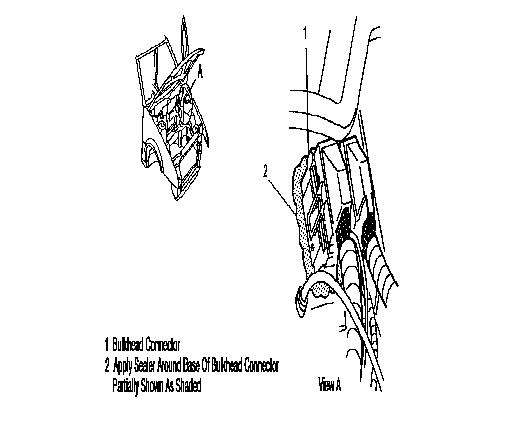

void in bulkhead connector gasket. Refer to figure 10.
|
1. Inspect for
lumps in the seam sealer which could distort the bulkhead connector gasket.
Refer to step 5 if there are not any lumps in the seam sealer which could
cause the bulkhead connector gasket to distort.
2. Remove the
bulkhead connector.
3. Remove seam
sealer lumps.
4. Install the
bulkhead connector.
5. Inspect for a
void in the bulkhead connector gasket.
6. Apply clear
sealer around entire perimeter of bulkhead connector.
7. Allow sealer to
dry.
8. Direct water
around the bulkhead connector.
9. Inspect from passenger compartment for leaks.
|
|
Condition: Carpet Wet Under Doors.
|
|
Cause:
1. Insufficient
door weatherstrip compression.
|
Correction:
1. Adjust door alignment. Refer to section 10-6 of the
service manual.
|
|
2. Pinched door
weatherstrip.
|
1. Inspect door
alignment.
2. Align door, if
needed. Refer to section 10-6 of the service manual.
3. Replace door weatherstrip.
|
|
3. Void between
doorweatherstrip carrier and
pinch weld.
|
1. Apply a solution
of 50% soap and 50% water around the exterior of the weatherstrip carrier.
2. Apply 40 PSI air
pressure around the interior of the weatherstrip carrier.
3. Inspect for soap
bubbles.
4. Pull
weatherstrip from pinch weld at void.
5. Pinch
weatherstrip carrier at void.
6. Apply black
weatherstrip adhesive to void between weatherstrip carrier and pinch weld.
7. Install weatherstrip.
|
|
4. Void at door
water deflector.
|
1.
Adjust door water deflector to seal void.
|
|
5. Sealer skip or

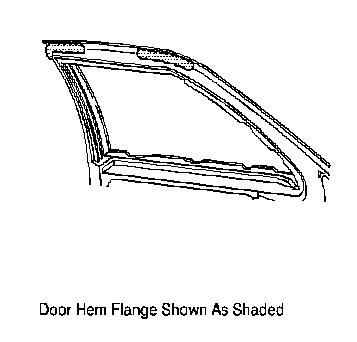

void at door him flange seam. Refer to figure 11.
|
1. Inspect for skip
or void at door hem flange sealer.
2. Apply clear
sealer to skip or void in the door hem flange sealer.
3. Allow sealer to
dry.
4. Direct water
around the door hem flange seam.
5. Inspect for leaks.
|
|
Condition: Wet Rear Shelf.
|
|
Cause:
1. Urethane skip or
void at backglass.
|
Correction:
1. Spray a solution
of 50% soap and 50% water around the perimeter of the window reveal molding.
2. Apply 40 PSI air
pressure around the interior of the weatherstrip carrier.
3. Inspect for soap
bubbles on the outside of the window reveal molding.
4. Remove any
interior trim at area of leak. Refer to the appropriate section of the
service manual.
5. Apply urethane
adhesive to the leak area and 127 mm (5 in.) on both sides of the leak
area using a flat bladed tool.
6. Allow urethane
to cure.
7. Inspect for
leaks. Refer to steps 1 through 3.
8. Remove and install window if leak is not corrected. Refer to
section 10-2 of the service manual.
|
|
2. Sealer skip or

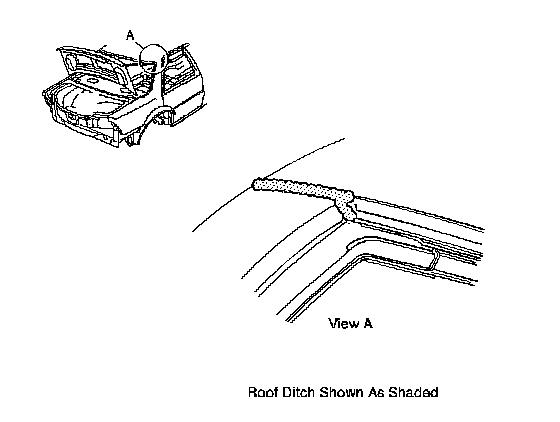

void at roof ditch seam. Refer to figure 12.
|
1. Remove quarter
trim panel. Refer to section 10-7 of the service manual.
2. Pull headliner
down enough to apply 40 PSI of air pressure between sheet metal panels from
inside of vehicle.
3. Direct water
over roof ditch.
4. Bubbles will
appear along roof ditch is a leak exists.
5. Remove roof
ditch molding.
6. Apply clear
sealer to area of leak.
7. Install roof ditch
molding.
8. Install quarter trim panel. Refer to section 10-7 of
service manual.
|
|
Condition: Wet Rear Compartment Area.
|
|
Cause:
1. Sealer skip/void
or spot weld burn through at the tail panel seams, deck gutter
seams, tail light seams, wheel-well panel seams, or quarter panel to

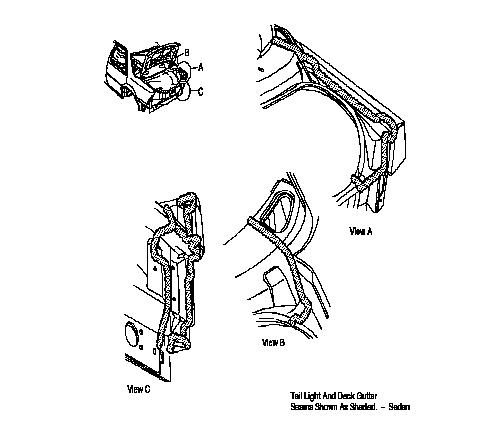

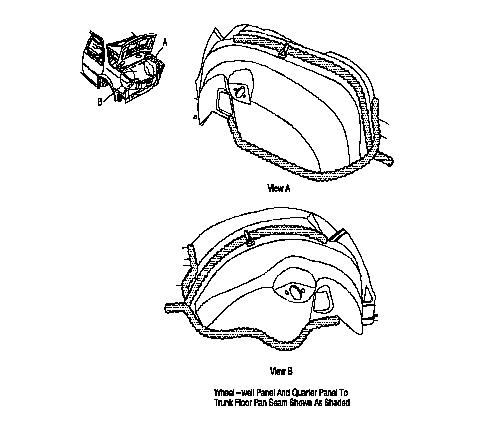

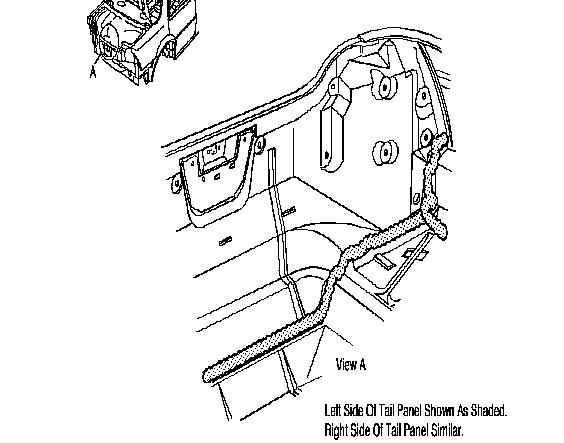

rear compartment floor pan seams. Refer to figures 13,14,15 and 16 .
|
Correction:
1. Remove rear
compartment trim.
2. Inspect for a
skip or void in seam sealer or for spot weld burn through.
3. Apply clear sealer
to a skip or void in the seam sealer or to any spot weld burn through.
4. Allow sealer to
dry.
5. Direct water
over the seam from the exterior of the rear compartment.
6. Inspect from
inside rear compartment for leaks.
7. Install rear compartment trim.
|
|
2. Sealer skip or

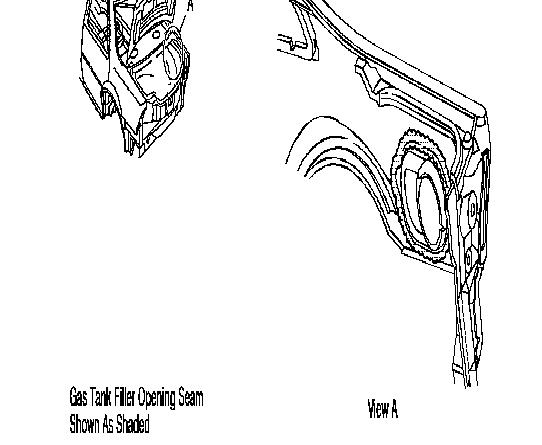

void at gas tank filler opening seam. Refer to figure 17.
|
1. Remove right
side rear compartment trim.
2. Direct water
from under vehicle and around gas fuller opening seam.
3. Inspect inside
rear compartment for leaks.
4. Apply urethane adhesive to area of leak.
|
|
3. Spot weld burn
through at gutter under rear window.
|
1. Inspect for spot
weld burn through.
2. Apply clear sealer to any spot weld burn through.
|
|
4. Insufficient
rear compartment lid weatherstrip compression.
|
1. Apply tracing
powder to the rear compartment lid surface.
2. Close the rear
compartment lid, but do not slam.
3. Open the rear
compartment lid and inspect for voids of tracing powder on the weatherstrip.
4. Adjust weatherstrip by bending upward on weatherstrip flange
where a void is indicated.
|
|
5. Pinched rear
compartment lid weatherstrip.
|
1. Inspect rear
compartment lid alignment.
2. Align rear
compartment lid, if needed. Refer to section 10-8 of the service
manual.
3. Adjust
weatherstrip, if needed, by bending weatherstrip flange.
4. Replace rear compartment lid weatherstrip.
|
|
6. Void between
rear compartment lid weatherstrip carrier and pinch weld.
|
1. Apply a solution
of 50% soap and 50% water around the exterior of exterior of the weatherstrip
carrier.
2. Apply 40 PSI air
pressure around the interior of the weatherstrip carrier.
3. Inspect for soap
bubbles.
4. Pull
weatherstrip from pinch weld at void.
5. Pinch
weatherstrip carrier
at void.
6. Apply black
weatherstrip adhesive to void between weatherstrip carrier and pinch weld.
7. Install weatherstrip.
|
|
7.
Loose or missing tail light nut.
|
1. Install tail
light nut.
2. Tighten tail light nut.
|
|
Condition: Wet Rear Compartment Area.
|
|
Cause:
1. Gasket void at
rear compartment lock cylinder.
|
Correction:
1. Direct water
over rear compartment lock cylinder.
2. Inspect inside rear
compartment for leaks.
3. Remove rear
compartment lock cylinder. Refer to section 10-8 of the service manual.
4. Sedan only -
install new rear compartment lock gasket.
5. Coupe only -
install rear compartment lock gasket.
6. Install rear compartment lock cylinder. Refer to
section 10-8 of the service manual.
|
|
Parts
Information (Parts Available from a GM dealer)
Kent Leak Check (clear),
P/N 10200 (Or Equivalent)
Black Weatherstrip
Adhesive, P/N 12345097 (Or Equivalent)
Urethane Adhesive,
P/N 212346284 (Or Equivalent)
Lock Gasket, P/N
22645381 (Or Equivalent)
Pictures
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
General Motors Bulletins
are intended for use by professional technicians, not a
"Do-It-Yourselfer". They are written to inform those
technicians of conditions that MAY OCCUR on SOME vehicles, or to provide
information that could assist in the proper service of a vehicle.
Properly trained technicians have the equipment, tools safety instructions
and know-how to do a job properly and safely. If a condition is
described, do not assume that the bulletin applies to your vehicle, or that
your vehicle will have that condition. See a General Motors
dealer servicing your brand of GM vehicle for information on whether your
vehicle may benefit from the information.
|
