Strut Upper mount replacement 95+

Post by 3X00-Modified »

Ok here is how the whole setup goes.

You need Monroe upper strut mounts Part# 904912 This is the upper mount, steel spacer, plastic angled spacer and bearing. I also bought the upper spring insulators Part# 903970. Do not use KYB boots, the original ones I had the bump stop was so large my car bottomed out on them with Eibach springs. I'm still unsure if they sent me the wront part though. I used Monroe boots and bumpstops. On my 96 I'm using the factory ones because they are the best.

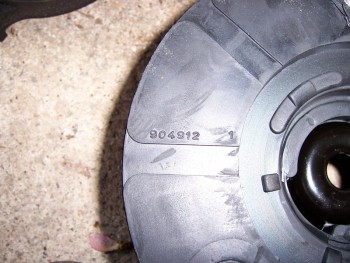

Pic of part number.

The assy goes as follows,

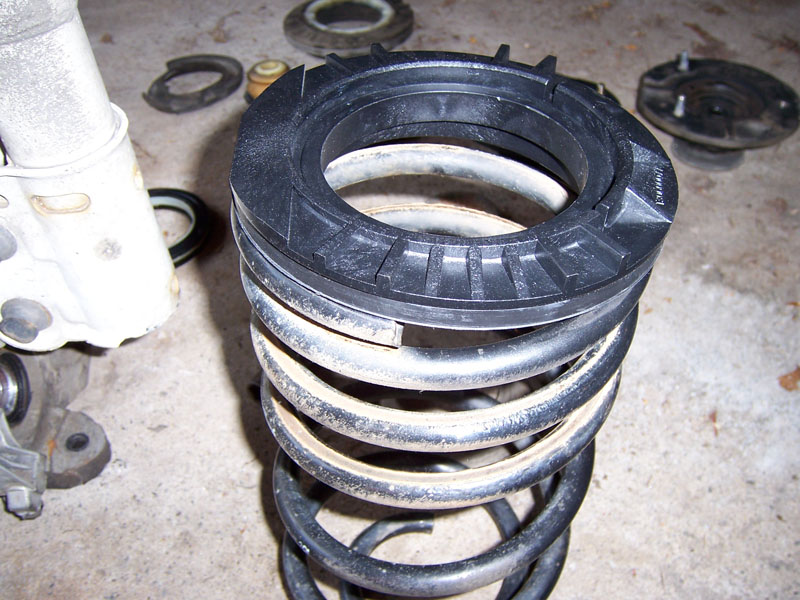

Flat side on the spring insulator goes outboard facing the tire, bearing goes in that with white portion facing up, then steel spacer, and then the upper mount with the plastic spacer thick side closer to the motor, aka Inboard.

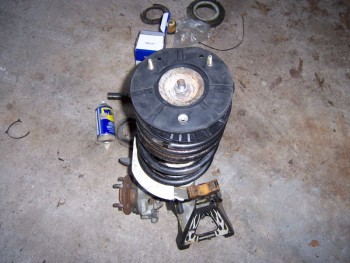

Reference pic to see the stack of parts.



Pics of other assy to help.

Cant forget the most important tool of all....


Flat side of spring insulator is parallel to the flat spot on the strut, its on the spindle side of the assy.

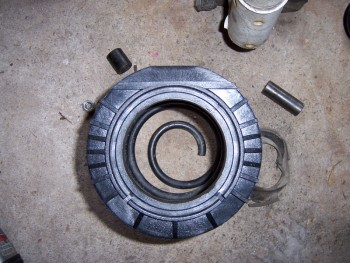

Other Random Pics of the upper mount.

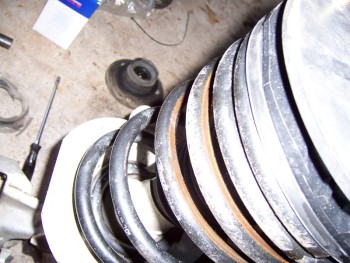

Orientation in comparison to the spring from top

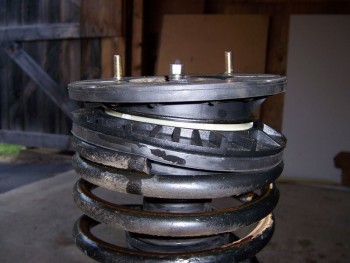

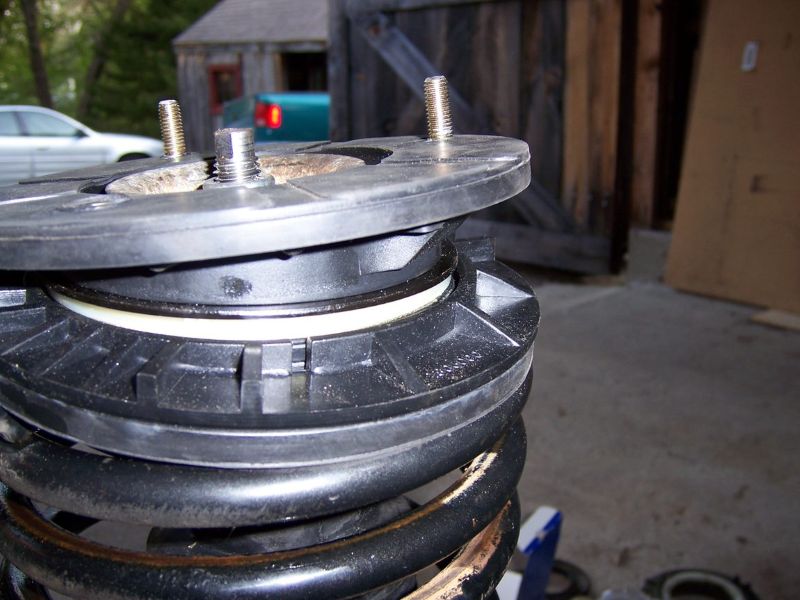

Famous side pic showing where spring coil ends in relation to the angled spacer, It will look the same for both sides, the thicker side of the spacer being on the side away from the "last coil"

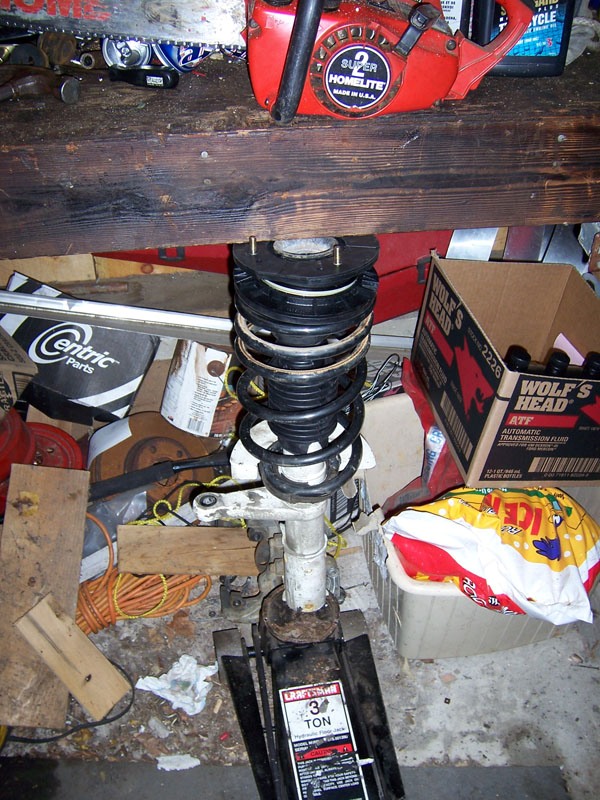

Who needs a spring compressor?!


All done..



Mr.Pink
Supreme Unit
Sleepy Goodness
"Beretta Guy"
KennethO
Registered User
Posts: 22
Joined: Mon Sep 14, 2009 7:00 pm

Strut Upper mount replacement 95+

Post by KennethO »

Thanks! :)


User avatar
ClonedGTZ
Registered User
Posts: 235
Joined: Mon Aug 03, 2009 11:02 pm
Location: gilbertsville PA

Re: Strut Upper mount replacement 95+

Post by ClonedGTZ »

whats the advantage with the 95+ ?


91 Beretta GT26- GT/Z26
User avatar
3X00-Modified
Administrator
Posts: 10903
Joined: Thu Jul 05, 2007 9:18 am
Location: Brooklyn CT

Re: Strut Upper mount replacement 95+

Post by 3X00-Modified »

No real advantage, I just posted how to do a 95+ setup since I know the 94 and older's are just a bit different since the upper mount differs. I guess you could use this on the older cars since the springs were all the same up front.


Mr.Pink
Supreme Unit
Sleepy Goodness
"Beretta Guy"
96B-Mike
Registered User
Posts: 440
Joined: Fri Sep 10, 2010 9:45 am
Location: Tampa,FL

Re: Strut Upper mount replacement 95+

Post by 96B-Mike »

would you need the Monroe upper strut mounts in order for you to install aftermarket struts?

or am i just missing the whole point of this thread? haha


User avatar
scd88ga
Registered User
Posts: 1828
Joined: Mon Jun 28, 2010 9:02 pm
Location: Wisconsin Rapids, Wisconsin
Contact:

Re: Strut Upper mount replacement 95+

Post by scd88ga »

96B-Mike wrote:would you need the Monroe upper strut mounts in order for you to install aftermarket struts?

or am i just missing the whole point of this thread? haha


No, you can use any brand of strut or strut mount you want with each other, doesn't matter.


'94 Quad 4 H.O. 5 speed Z26, Red & Rare! 1 of 896 Quad Z26's and of those it's 1 of 167 red paint/gray interior!
Need A Quality Used Part? Contact me at Posihead Auto Parts!
https://www.facebook.com/pages/Posihead ... 3779691724
User avatar
3X00-Modified
Administrator
Posts: 10903
Joined: Thu Jul 05, 2007 9:18 am
Location: Brooklyn CT

Re: Strut Upper mount replacement 95+

Post by 3X00-Modified »

I simply posted this thread with the brand I used.


Mr.Pink
Supreme Unit
Sleepy Goodness
"Beretta Guy"
96B-Mike
Registered User
Posts: 440
Joined: Fri Sep 10, 2010 9:45 am
Location: Tampa,FL

Re: Strut Upper mount replacement 95+

Post by 96B-Mike »

scd88ga wrote:
96B-Mike wrote:would you need the Monroe upper strut mounts in order for you to install aftermarket struts?

or am i just missing the whole point of this thread? haha


No, you can use any brand of strut or strut mount you want with each other, doesn't matter.



kk thanks


User avatar
3X00-Modified
Administrator
Posts: 10903
Joined: Thu Jul 05, 2007 9:18 am
Location: Brooklyn CT

Re: Strut Upper mount replacement 95+

Post by 3X00-Modified »

To follow up on this I'm currently running AC-Delco parts that I got from RA. The assy process is still the same and I just listed Monroe so you could walk into a store with numbers that they can cross reference.


Mr.Pink
Supreme Unit
Sleepy Goodness
"Beretta Guy"
