Don't mess with texas - 3400 swap project

[themixer]

i loved the exedy clutch in my 2.2, will this new clutch be heavy to shift?

[themixer]

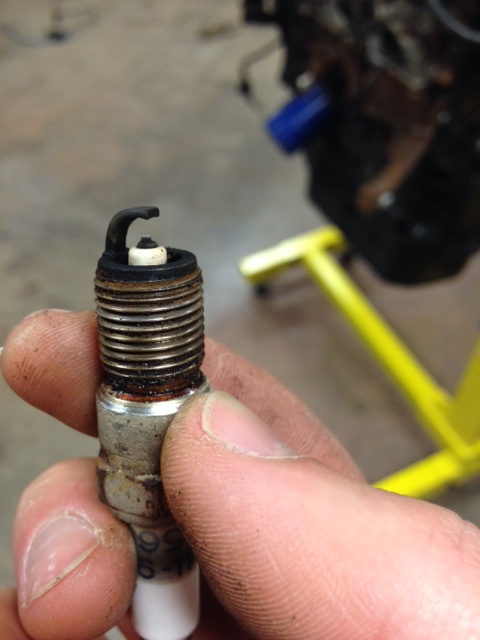

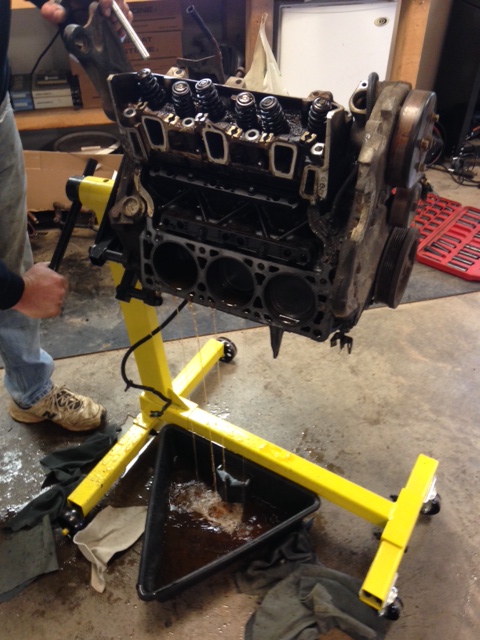

Some updates to the swap project, engine has all new top end gaskets, put together by a dealer tech. He says the inside of the engine looks great, so it should work well for this application. Plugs were originals (ordered a new set), van didn't have any check engine light on at all, GM ignition systems are amazing.

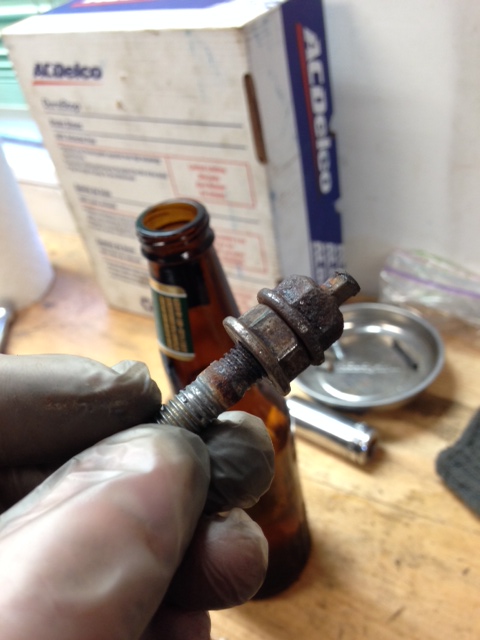

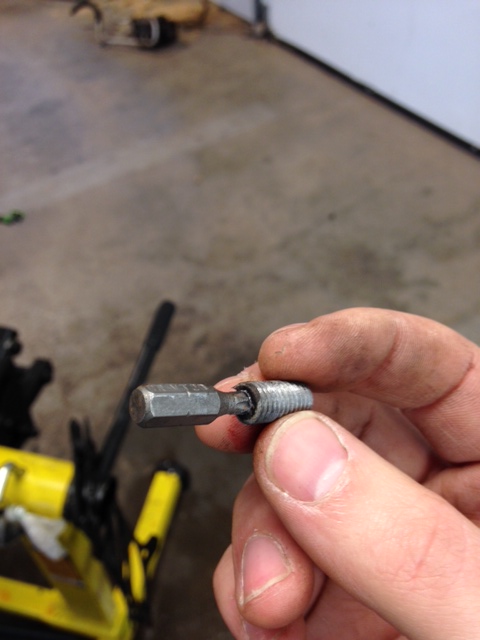

Learned a couple new tricks for stuck/broken exhaust stud removal. Double nut works really well for a stuck one and drilling out the broken one with a 1/8th bit then pound in a T20 torx bit, came out with ease.

[themixer]

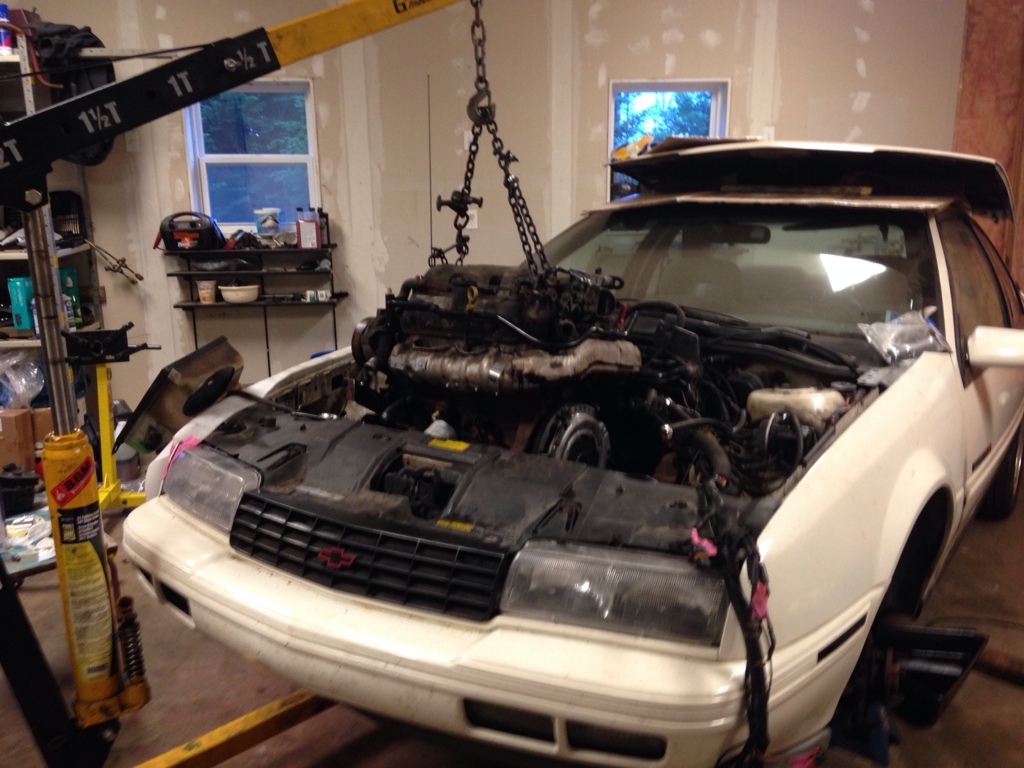

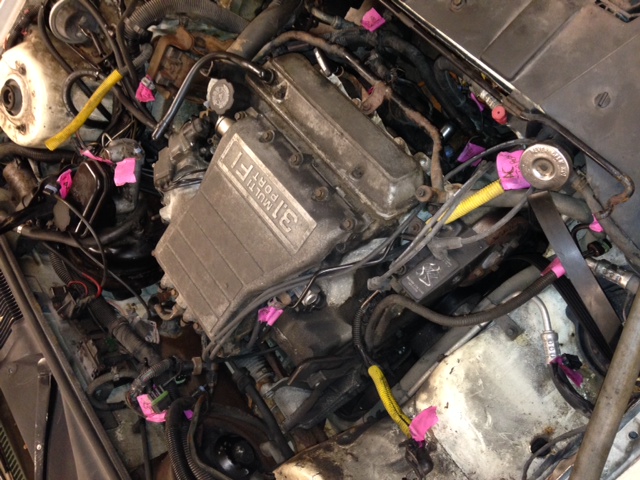

engine is on the way out, labeling everything don't want to get screwed up during the install!

[Money pit Beretta]

No way to miss those labels!

[3X00-Modified]

I can't remember the last time that I ever labeled wires when removing or working on an engine. The only thing I've been doing lately for organizational purposes and speed, is to bag and tag bolts that I remove so I don't have to go searching for them when I need them.

[themixer]

All my bolts are in zip locks labeled and organized, the extra few minutes definitely will save a lot of time later

[heavywoody]

I can't remember the last time that I ever labeled wires when removing or working on an engine. The only thing I've been doing lately for organizational purposes and speed, is to bag and tag bolts that I remove so I don't have to go searching for them when I need them.

You've also done engine swaps a time or twelve...

[3X00-Modified]

Yeah but stupid me I didn't even do it the first time I removed a motor... Granted I didn't have issues going back in but you'd think first time around I would mark something but I just didn't.

[1988GTU]

its always good practice to label stuff.

Just to keep people from walking off with hardware or small harnesses, I put them in a clear tote to stow it away until its ready for use again.

don't need someone messing with a rebuild on me again!

[Razbery Beretta]

That looks like a crazy big job... have fun and good luck!

[whiteretta]

We were told in college during engines class to bag 'em and tag 'em, never though about putting everything in a tote though... smart idea!

[themixer]

My tote was just a plastic shopping bag

Really good things are happening in the garage

Sent from mobile device

[themixer]

well an update

i have the incorrect mounting brackets, attempting to locate some fingers crossed

[Rettax3]

Mounting brackets for??? I think most of us that are following your thread would be willing to help you look...

[themixer]

for the engine mounts, check out this thread maybe you can shed some light on this.

http://www.beretta.net/forum/viewtopic. ... 5&start=30
