Would a digital cluster work in a non digital car?

[GT_Indy]

Cam, if you decide to go through with making the digital cluster function in your car I'd be interested in seeing photos.

Here is a thread that has some info, but not the original post:
http://beretta.net/forum/viewtopic.php?t=10808

One thing I'm thinking is how to make the serial output for the cluster to read. I don't think the OBD2 ecm has that capability. However It shouldn't be too difficult to make it with a Pic18 or an arduino, I think it was a standard output.

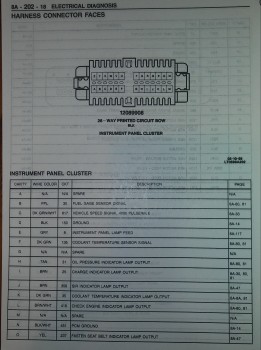

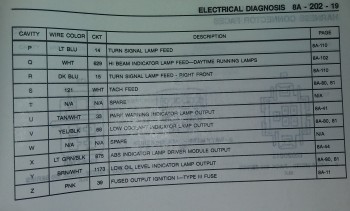

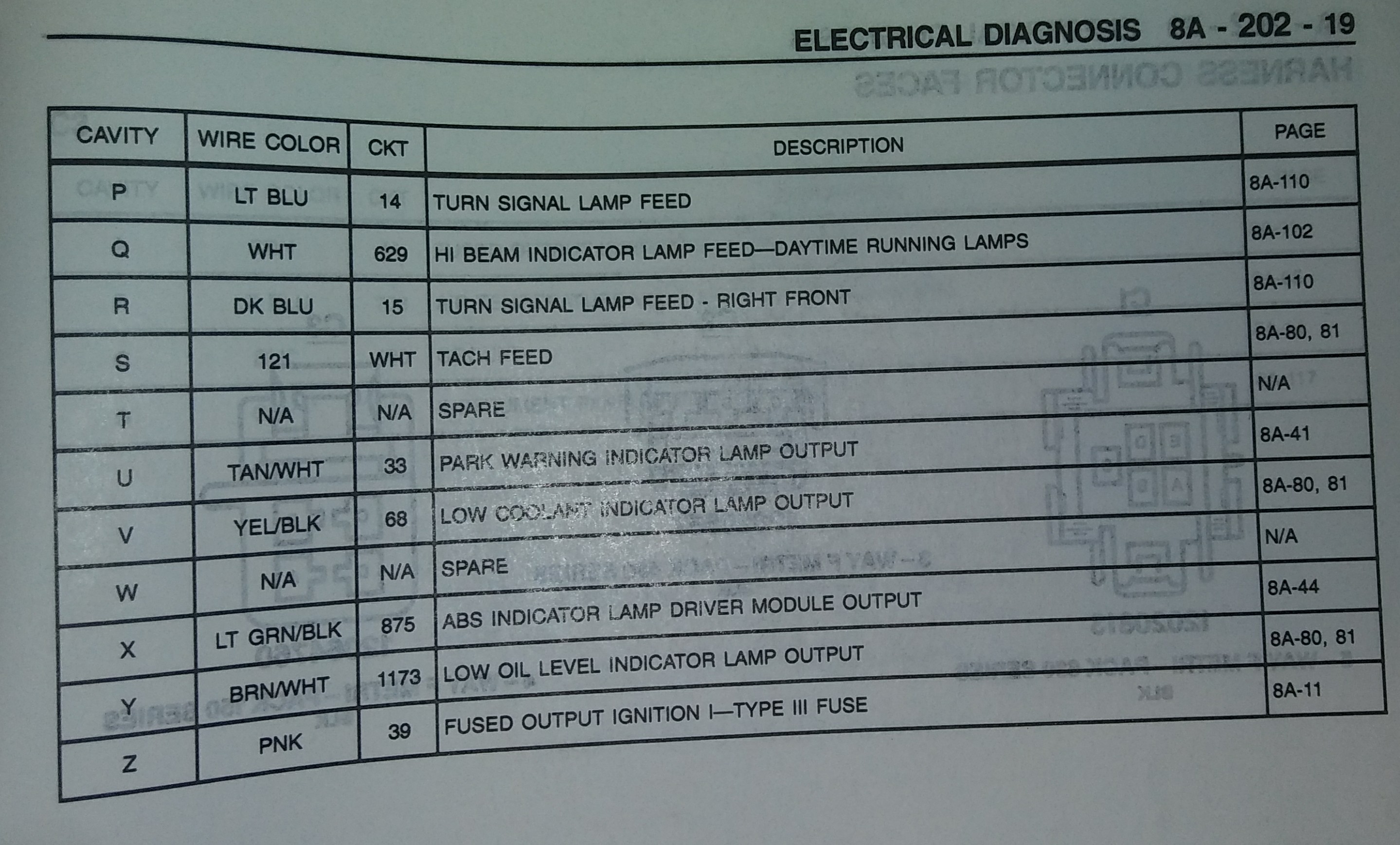

Below are a couple photos of the 96 Beretta gauge cluster connector electrical pinnout if you decide to adapt it to your car:

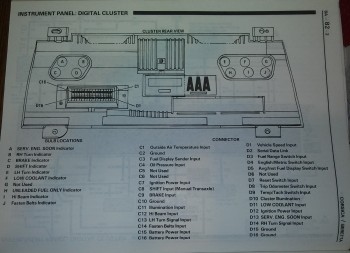

And just in case, this is the digital cluster connector pinnout info from the book:

[Cam2363]

Cam, if you decide to go through with making the digital cluster function in your car I'd be interested in seeing photos.

Here is a thread that has some info, but not the original post:
http://beretta.net/forum/viewtopic.php?t=10808

One thing I'm thinking is how to make the serial output for the cluster to read. I don't think the OBD2 ecm has that capability. However It shouldn't be too difficult to make it with a Pic18 or an arduino, I think it was a standard output.

Below are a couple photos of the 96 Beretta gauge cluster connector electrical pinnout if you decide to adapt it to your car:



And just in case, this is the digital cluster connector pinnout info from the book:


Thanks! You have been a big help. I got the cluster, but all the bulbs and sockets in the bottom that light it up are missing. Do you have any idea what size the bulbs and sockets are?

[Cam2363]

Just an update since it has been a while.
The cluster works great. And I was able to make the speedo change values just by changing the voltage to that pin, I think.

I think I also managed to make the tach move too, but it has been a while and im not sure everything that I could make work and not. I am tempted to get the cluster back out and run more tests. I really want to put it in my Beretta, but I dont want to mod anything. So its a really tough choice.

[Cam2363]

Something I just discovered is that the 00 Caviler had a digital dash that was a half moon shape like the beretta ones. Do any of you have any idea on the compatibility of the 2?

[Rettax3]

The '00 Cavvy cluster isn't digital -just the odometer display of it. Cavvys haven't had an actual digital cluster since around the time of the Beretta digitals. I have a couple of them (fried), and they were kind of cool, digital plasma displays but with an analog tach. I had one ready for my '90 'Retta, but toasted the cluster when I tried to rework it to fit in a Beretta's instrument housing.

[Cam2363]

The '00 Cavvy cluster isn't digital -just the odometer display of it. Cavvys haven't had an actual digital cluster since around the time of the Beretta digitals. I have a couple of them (fried), and they were kind of cool, digital plasma displays but with an analog tach. I had one ready for my '90 'Retta, but toasted the cluster when I tried to rework it to fit in a Beretta's instrument housing.

Ok thanks. I really want to do the mod, but I dont want to damage anything, and it looks like a lot of stuff I would need to figure out as it doesn't seem like there is a guide on what to do. Thanks for your help!
