6r8ph1x: Real Reason To Be Called A Gt.

Tell us about your Beretta and Post an Image
6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

breathers are the other pcv valve broski :) i know about the pressure build up. like i said, i am going to put a breather on the valve cover in order to re-leave that.
User avatar
Money pit Beretta
Registered User
Posts: 6411
Joined: Thu Jul 26, 2007 11:36 am
Location: Kansas

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by Money pit Beretta »

I'm not big on those things. I had the same set up on my 90(tranzgenic CAI). I don't use the AC that much and I could smell that burnt oil from the breather when I used the vent (when stopped or at idle).Also sometimes when I opened the hood I could smell it. How do I put this............ your car looks too good to have the I spent all of my money on the body and none on sealing oil leaks smell.
keep'em flying!
6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

haha we'll see how things goSHE LIVES!!!!!!!!!! BUA HA HAHaha
User avatar
IsaacHayes
Registered User
Posts: 975
Joined: Fri Oct 07, 2005 8:32 pm
Location: Missouri

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by IsaacHayes »

You still want some vacuum to remove combustion blow by so it doesn't contaminate your oil while cruising... One side is vacuum, one side is a breather stock... Should be that way still....

Why go OBDII? you have OBDI so you can tune with that....
Image Image 2010 project (click pic)
1994 3100 BERETTA. 200,000+ miles.
16.0 @ 84.41mph when stock. Now ???
Original L82 w/LA1, LX9, & LX5 parts!!!

soon to be OBD1 tuned...
6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

so last night was just a test fire with no down pipe, but today we fabbed up a down pipe out of the old stock one (eeeeeeewwwww, 1 7/8 inch id) just as a temporary place holder. also i only had grand am heater lines to work with so the heater core is bypassed at the moment. also, i can't find a fugging place to put my coolant temp sensor for the gauge, i got the one for the pcm to read but not for the gauge grrrrrrr. alot of little things i "temporarily" fixed because i have to drive the car like tomorrow. but she still runs. my 3.1 injectors are loud as fudge and kinda piss me off but hey, what ever. oh ya, on a stock 3.1 tune it seems alittle sluggish fir it being a big upgrade but i believe that to be because of the tune.
Cliff8928
Administrator
Posts: 1775
Joined: Wed Mar 03, 2004 10:03 pm
Location: Long Grove, IL
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by Cliff8928 »

Use a 3-wire sensor in place of the two wire, then you can have your gauge working with only the one sensor.
Cliff Scott
wicked-irocz
Registered User
Posts: 1035
Joined: Thu Feb 20, 2003 11:21 pm
Location: South Central MN

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by wicked-irocz »

really, you will need bigger injectors.

I just did a 3400 manifold DP but didn't have the time to make the fixture. With enough interest I could probably convince the lucky owner to let me take it off for a day.
94 Beretta Z26 57,4xx miles
3100, auto, crank windows, power locks/trunk, A/C,
To many mods to list
-intercooler :shock:

Among beretta boards
1st Turbo 4t60-e
1st Turbo 3100
1st Turbo Z26
1st 94+ Turbo
6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

why will i need bigger injectors if i'm going off of a stock tune??
User avatar
Money pit Beretta
Registered User
Posts: 6411
Joined: Thu Jul 26, 2007 11:36 am
Location: Kansas

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by Money pit Beretta »

The stroke is the same, but the bore is bigger than the 3.1. You will need some 3400 injectors. :) Wicked's down pipe would be the one to get!
keep'em flying!
6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

User avatar
IsaacHayes
Registered User
Posts: 975
Joined: Fri Oct 07, 2005 8:32 pm
Location: Missouri

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by IsaacHayes »

Plus the 3400 heads and intake flow a TON better than the gen2 crap. That right there will be a big part of needing more fuel. 3400 injectors and a 3400 tune chip is a must.

EDIT:

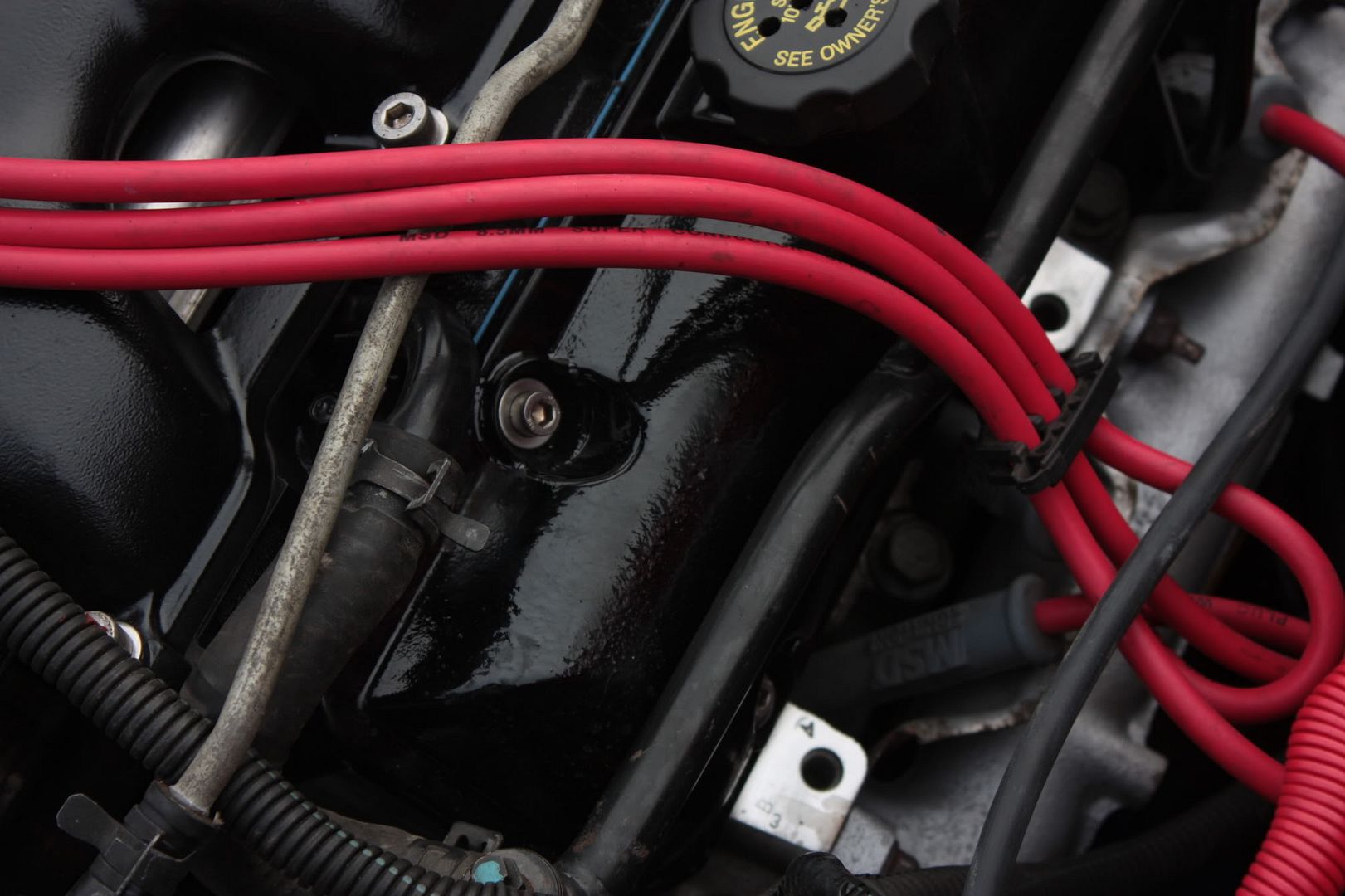

Route those plug wires like stock it will look better. And get a crimp thing for the TV cable so that it fits in like stock and doesn't wear like that...
Also, grab a 95+ engine mount from a junkyard. From a beretta, grand am(95-98) etc. It has a better top piece and will fit the poly insert correctly and last longer.
Image Image 2010 project (click pic)
1994 3100 BERETTA. 200,000+ miles.
16.0 @ 84.41mph when stock. Now ???
Original L82 w/LA1, LX9, & LX5 parts!!!

soon to be OBD1 tuned...
User avatar
99GaGT3X00
Registered User
Posts: 805
Joined: Tue Jan 11, 2005 1:56 pm
Location: North Brookfield,MA
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 99GaGT3X00 »

whats with the holes drilled in the oil filler cap.
3400/3500 Hybrid
227/233@.050 .515.515 lift 112LSA
15.232@88.85mph on stock 3400

99 Grand Am GT------03 Subaru Outback H6
6r8ph1X
Registered User
Posts: 357
Joined: Mon Apr 09, 2007 11:07 pm
Location: Beavercreek, Ohio
Contact:

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by 6r8ph1X »

lol the holes are my temporary breather. it works :) for the time being
User avatar
Money pit Beretta
Registered User
Posts: 6411
Joined: Thu Jul 26, 2007 11:36 am
Location: Kansas

Re: 6r8ph1x: Real Reason To Be Called A Gt.

Post by Money pit Beretta »

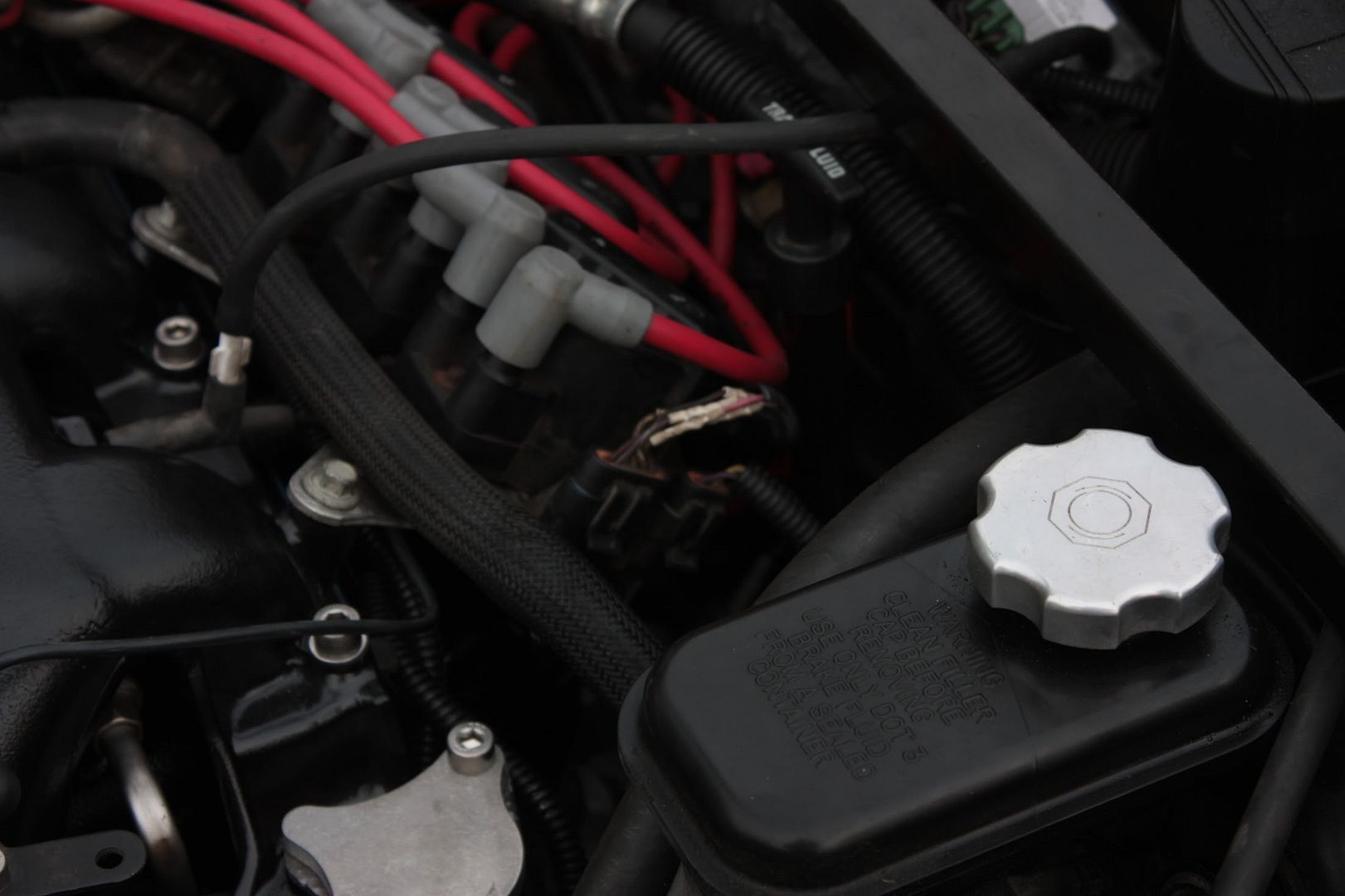

Ouch, what happened to the ICM wires? That is one strange PCV breather. What are you using on the other side? Do you smell oil fumes at idle? Or did you luck out by having that hood to get rid of them?
Good looking engine, I would push that hose for the vac mod on more though, just in case.
keep'em flying!
