which one is the ECM?

berry · Post by **berry** » Sun Apr 21, 2013 7:39 am

hi guys

I'd like to install my new fuel consumption gauge MPGUINO (http://mpguino.wiseman.ee/eng) in my 92 GT 3.1
But I'm little bit confused: Which one is the ECM-Box? Left or right?

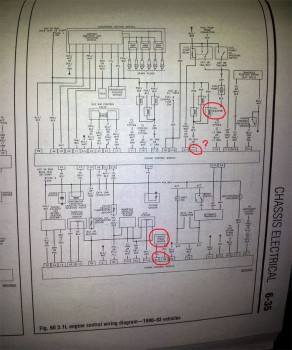

I need the Injectorsignal (C11) and the VSS (B9 or B10) for the installation

thanks for your help!
berry

ifixalot · Post by **ifixalot** » Sun Apr 21, 2013 9:47 am

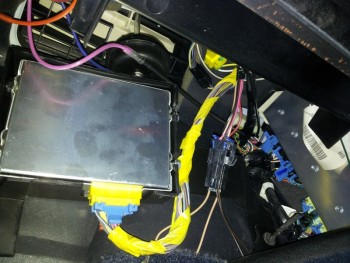

the one without the yellow on the wires, it is in the background, far right, in your photo

Koots · Post by **Koots** » Sun Apr 21, 2013 9:50 am

I've had that gauge bookmarked for quick purchase, for a few months now but keep forgetting to pick one up.

What options did you go with? and let us know how it works out for ya!

woody90gtz · Post by **woody90gtz** » Sun Apr 21, 2013 11:58 am

Correct. It is the one on the right.

Asylum · Post by **Asylum** » Sun Apr 21, 2013 7:02 pm

Why do you need this gauge?

berry · Post by **berry** » Mon Apr 22, 2013 11:01 am

Yeah I've found the right plugs! Thank you guys!!

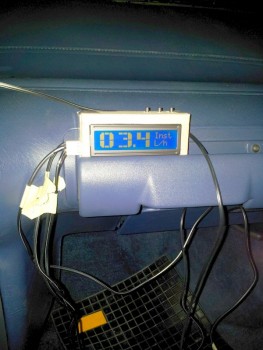

Now I have to figure out how to connect the pins with the gauge. Looks tricky. I can't find the retainers for the socket pins. I'd like to release the retainers and take the pins out and to crimp together with the wires of the gauge. and then put it back into the socket.
@koots & eric: i need the mpguino for fuel monitoring and for racing
I'll keep to up to date

cheers

woody90gtz · Post by **woody90gtz** » Mon Apr 22, 2013 12:34 pm

When I have spliced into the ECM I didnt remove the pins. I cut the wire a couple inches downstream with the wire going to the pin in one side of the butt connector and the new wire and the other part of the original wire in the other end of the butt connector. Solder and heat shrink and you're good to go.

Post by **3X00-Modified** » Mon Apr 22, 2013 1:00 pm

Just remember on a MPFI engine you are firing 3 injectors at once... so when you set values in that unit you need to account for that somehow...

berry · Post by **berry** » Tue Apr 23, 2013 5:17 pm

Yes Mr. Pink I managed to connect the injector signal to the mpguino! It shows the RPM very exact.
But I have troubles with the VSS. I tried B9 AND B10 on the ECM. None of them worked. The gauge always showed 0 km per hour. I think I have to take the signal from the cluster.
I will try this one in the cluster: "C - (DK GRN/WHT) Speedometer" (thanks to Jeff P, he posted the pinout of the full cluster)
http://www.beretta.net/forum/viewtopic. ... er+#p15222

Or any other suggestions?

berry · Post by **berry** » Sun Apr 28, 2013 4:30 pm

*********BREAKING NEWS***************

it works!!!

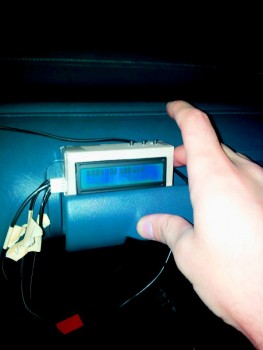

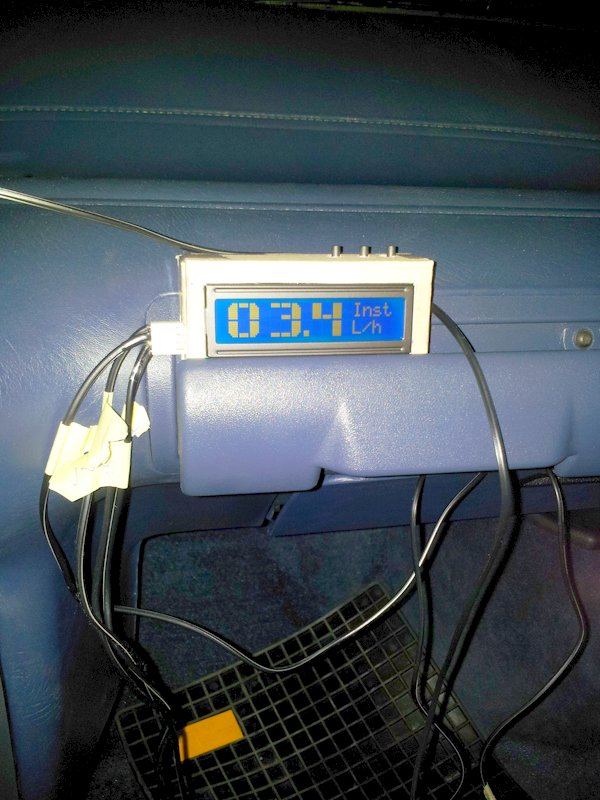

I took the injector signal from the ECM and the VSS from the cluster

*********DETAILS FOLLOW SOON********
